Remote Tuning Device

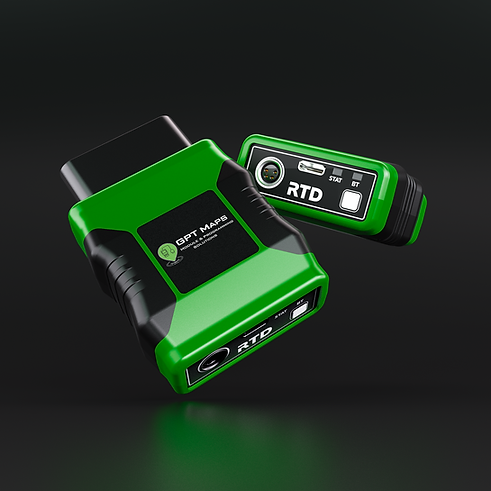

RTD Gen 3 Remote Tuning Device
Get professional remote tuning without transporting the vehicle to a tuning shop. The GPT Maps RTD Gen 3 connects your vehicle to our tuning team through the HP Tuners Tune Delivery Network.
​
Use the RTD to read the vehicle’s existing calibration, receive completed tune files from GPT Maps, flash those files to supported controllers, and send data logs when additional adjustments are needed.
​
RTD Gen 3 Device — $279
Device only. Tuning services and HP Tuners credits are sold separately.
​​​​
-
Powered by HP Tuners Technology
-
Works With the TDN Mobile App
-
Supports Remote Reading and Flashing
-
Advanced Data Logging With VCM Scanner
-
​Designed for Shops and Vehicle Owners
Professional Tuning Without the Travel
When the mechanical work is complete but the calibration still needs attention, the RTD Gen 3 allows the vehicle to remain at your location.
​
Transmission shops, repair facilities, performance shops, and vehicle owners can connect directly with GPT Maps for supported remote tuning services. You do not need to build tunes yourself or purchase full tuning software.
​​
GPT Maps creates the calibration. The RTD provides the connection needed to read, receive, and flash it.
What Does the RTD Gen 3 Do?
Read the Existing Calibration
Connect the RTD to the vehicle and use the HP Tuners TDN app to read supported controllers. The read file can then be sent directly to GPT Maps for review.
Receive Professional Tune Files
After GPT Maps completes the requested calibration, the finished tune file is delivered through the TDN network.
Use the RTD and TDN app to license the supported controller and write the completed tune file to the vehicle.
Record and Send Data Logs
When additional information is needed, the RTD can collect vehicle data and send the log to GPT Maps for review. RTD Gen 3 is also compatible with VCM Scanner for more advanced data logging.
Protect the Calibration
RTD Gen 3 does not provide access to VCM Editor. Customers can read and flash supported files without opening, viewing, or changing the calibration created by the tuner.
Available Remote Tuning Services
GPT Maps offers remote tuning for select engine and transmission applications.
​
GM 6L80 and 6L90 Transmission Tuning
​
Our 6L80 and 6L90 tuning services are designed for supported GM transmission rebuilds, replacements, swaps, and performance applications.
​
Available adjustments depend on the vehicle and may include:
​
-
Shift timing and shift strategy
-
Shift pressure and firmness
-
Torque-converter clutch operation
-
Torque-management adjustments
-
Tire-size and gear-ratio corrections
-
Supported drivability improvements
​
Mechanical or hydraulic transmission problems cannot be corrected through tuning.
​
Engine and Performance Calibrations
​
Remote engine tuning may be available for supported vehicles and modifications. Available services vary by application and may include selected DoD/AFM, MDS, VVT, transmission, and performance-related calibrations.
​
Contact GPT Maps before purchasing tuning services to confirm that your vehicle, controller, and requested changes are supported.
How Remote Tuning Works
1
Confirm Vehicle Compatibility
Send GPT Maps the year, make, model, VIN, engine, transmission, modifications, and requested tuning service. We will verify support before beginning the process.
2
Purchase the RTD Gen 3
The RTD Gen 3 device is $279. This purchase covers the device only. Tuning services and required HP Tuners credits are additional.
3
Download the TDN App
Install the HP Tuners Tune Delivery Network app on a compatible phone or tablet. Create your account and use the invitation provided by GPT Maps to join our tuning network.
4
Read and Submit the Vehicle File
Connect the RTD to the vehicle, follow the instructions in the TDN app, and send the original read file to GPT Maps.
5
Purchase the Tune and Required Credits
GPT Maps will confirm the tuning price and number of HP Tuners credits required for the vehicle and controllers being tuned.
6
Receive and Flash the Tune
Once the calibration is complete, it will be sent through TDN. Use the RTD and app to license the controller and flash the completed file.
7
Send a Data Log if Requested
Some applications may require a data log or additional information before the tune can be completed or revised.
RTD Gen 3 Pricing
RTD Gen 3 Device
​
$279
​
Includes the remote tuning interface only.
​
HP Tuners Credits
​
$44.99 per credit
​
The number of credits required depends on the vehicle and controller. Engine and transmission controllers may require separate licensing.
​
GPT Maps Tuning Services
​
Priced separately
​
Tuning prices depend on the requested service, vehicle, controller, and modifications.
​
Additional controller unlocks, hardware, cables, credits, or services may be required for certain applications.
Why Purchase Your RTD Through GPT Maps?
Direct Access to an Automotive Tuning Team
​
GPT Maps works with repair shops, transmission builders, and vehicle owners who need practical calibration support—not generic technology assistance.
​
Built Around Remote Service
​
The RTD allows GPT Maps to receive vehicle files, deliver completed calibrations, and review data logs without having the vehicle physically brought to us.
​
Keep the Device for Future Work
​
The RTD can be used again for future supported tuning services. Additional vehicles and controllers may require separate HP Tuners credits and tuning fees.
​
Clear Support Before You Begin
​
We verify the vehicle and requested service before tuning begins so you understand compatibility, expected costs, and any additional requirements.
.png)
Important Information
The RTD Gen 3 is a tool for reading, receiving, data logging, and flashing supported vehicle calibrations. It does not include VCM Editor and does not allow the customer to create or modify tune files.
​
Purchasing the device does not guarantee that every vehicle, controller, or requested modification is supported. Always confirm compatibility with GPT Maps before ordering tuning services or HP Tuners credits.
​
Remote tuning cannot repair mechanical failures, wiring problems, communication faults, damaged controllers, or internal transmission problems. The vehicle must be properly diagnosed and mechanically sound before tuning.
Frequently asked questions
Bring Professional Remote Tuning to Your Shop
Keep the vehicle at your location while GPT Maps handles the calibration remotely. Purchase an RTD Gen 3, connect through the TDN network, and get professional tuning support without transporting the vehicle to a tuner.
​
Not sure whether your application is supported? Contact GPT Maps with the vehicle information before purchasing your tuning service.
